9011 (HT901W) Electrical Potting Compound RTV Silicone Bonding and sealing

    Buy cheap 9011 (HT901W) Electrical Potting Compound RTV Silicone Bonding and sealing from wholesalers

    Buy cheap 9011 (HT901W) Electrical Potting Compound RTV Silicone Bonding and sealing from wholesalers
    • Buy cheap 9011 (HT901W) Electrical Potting Compound RTV Silicone Bonding and sealing from wholesalers

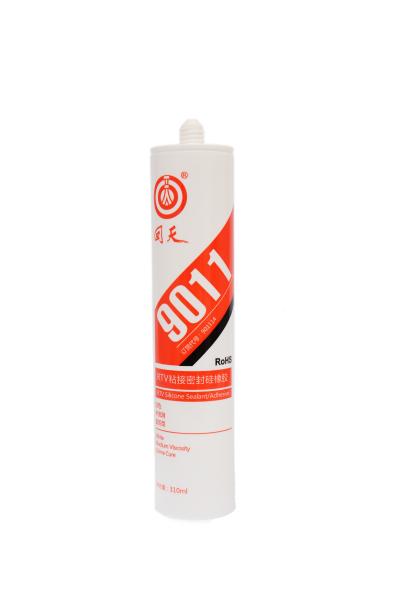

    9011 (HT901W) Electrical Potting Compound RTV Silicone Bonding and sealing

    Ask Lasest Price
    Brand Name : Huitian
    Model Number : 9011
    Certification : UL, SGS
    Price : Negotiation
    Supply Ability : 1000 TON MONTH
    Delivery Time : 15 WORK DAYS
    • Product Details
    • Company Profile

    9011 (HT901W) Electrical Potting Compound RTV Silicone Bonding and sealing

    9011 (HT901W) RTV Bonding sealing silicone


    9011 is a single component, micro flow, white, take off the room temperature vulcanized silicone rubber. There is a certain level of leveling, and will not penetrate into the small gap, excellent sealing. After curing, the rubber is elastic body, has excellent anti cold and hot changes, resistance to stress changes and other properties. High and low temperature in -40 to 200 DEG C to maintain flexibility and long-term stability, anti ultraviolet, anti-aging. With excellent insulation, moisture, shock, resistance to corona, anti leakage and chemical resistance of the media. Fully comply with EU ROHS directive requirements.


    Typical use
    Electronic components and all kinds of instruments of waterproof, moisture-proof seal, can also be used for electronic components of adhesive reinforcement and module encapsulation protecting.


    ● Specifications & Packages

    100ml/cartridge

    310ml/cartridge

    2600ml/ cartridge


    How to Use

    1.Keep the object surfaces clean without rusts, dusts and oil.

    2.Dispense the sealants to object surfaces.

    3.Put the objects in the air for 24 hours in the condition of room temperature & 55%RH to reach a cure depth of 2~4mm the longer, the deeper.

    4.The outlet of unspent adhesive should be sealed in time, clean the crusts on the outlet for another use within a short time, the performance of adhesive won’t be affected.


    ● Technical Data:

    ItemUnitTypical ValueRange
    Item No.9011
    ColorWhite
    Component of Basic MaterialsPolysiloxane
    Densityg/cm31.201.15 ~1.25
    Tack Free Time (25℃,50%RH)min85-15
    Curing Typedeoximation
    HardnessShore A3530-40
    Tensile StrengthMpa1.4≥1.3
    Elongation at break%250≥200
    Shear StrengthMpa1.4≥1.3
    Dielectric StrengthKV/mm23≥20
    Work Temperature-40~200

    ● Storage:

    Keep the sealant away from children.

    Use it in ventilated places

    In case of contact with skins, wipe and then flush with clear water.

    In case of contact with eyes, flush with clear water immediately and go to hospital for checking.

    Store it in dry and shady places at the temperature of 8~28℃

    Storage life is 6 months from the date of manufacture.
