0112G High Performance Silicone Thermal Grease corona resistance Thermal Conductivity 1.35W/(m•K)

    Buy cheap 0112G High Performance Silicone Thermal Grease corona resistance Thermal Conductivity 1.35W/(m•K) from wholesalers

    Buy cheap 0112G High Performance Silicone Thermal Grease corona resistance Thermal Conductivity 1.35W/(m•K) from wholesalers
    • Buy cheap 0112G High Performance Silicone Thermal Grease corona resistance Thermal Conductivity 1.35W/(m•K) from wholesalers

    0112G High Performance Silicone Thermal Grease corona resistance Thermal Conductivity 1.35W/(m•K)

    Ask Lasest Price
    Brand Name : HUITIAN
    Model Number : 0112G
    Certification : RoHS
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 2000T/Month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    0112G High Performance Silicone Thermal Grease corona resistance Thermal Conductivity 1.35W/(m•K)

    0112G is a one-component Silicone Thermal Conductive Grease suitable for gap filler and reducing the temperature of electronic components.
    Product features:
    One-component, white;
    Physical form: paste;
    Wide working temperature range;
    Nontoxic, non-corrosive to PCB and metal;
    Eco-friendly, odorless;
    Maintain dry and flowing at high temperature;
    High performance on insulation, corona resistance, electric leakage resistance, and chemical resistance;
    Can be manually glued or machine glued;
    Thermal conductivity: ≥1.35W/m·K

    ItemUnitTypical Value
    Item No.0112G
    Physical Formpaste
    Colorwhite
    Main Componentpolysiloxane
    Densityg/cm32.65
    Penetration Degree1/10cm300
    Volatility(200℃,24h)%0.2
    Volume ResistivityΩ*cm1.0×1015
    Dielectric StrengthKV/mm24
    Breakdown VoltageKV/mm20
    Surface ResistanceΩ2.5×1014
    0.1mm Thermal Resistancem2K/W0.00014
    Work Temperature-40~200
    Heat Conductivity CoefficientW/(m·K)≥1.35

    Main Applications:

    Widely used for the thermal conductivity of electronic components including the filling of gap between CPU and heat sink.

    To fill the gap between high-power audion, thyristors and basic materials such as copper and aluminum reduce the temperature of electronic components.


    Packing:

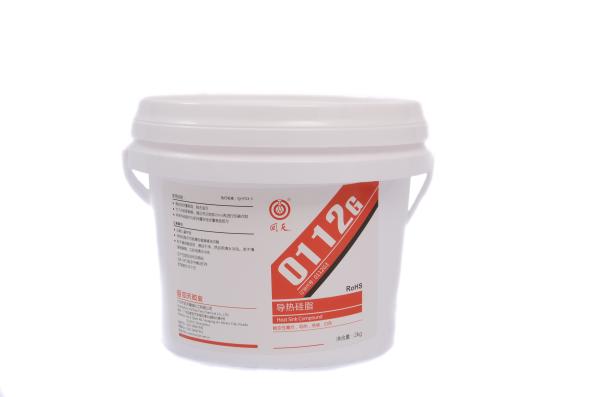

    2kg/bucket, 6buckets/carton


    Storage:

    Store it in dry and cool places at the temperature of 0~35°C
    Shelf life is 12 months
